使用 React 与 Kotlin/JS 构建 web 应用程序——教程

This tutorial will teach you how to build a browser application with Kotlin/JS and the React framework. You will:

  • Complete common tasks associated with building a typical React application.
  • Explore how Kotlin's DSLs can be used to help express concepts concisely and uniformly without sacrificing readability, allowing you to write a full-fledged application completely in Kotlin.
  • Learn how to use ready-made npm components, use external libraries, and publish the final application.

The output will be a KotlinConf Explorer web app dedicated to the KotlinConf event, with links to conference talks. Users will be able to watch all the talks on one page and mark them as seen or unseen.

The tutorial assumes you have prior knowledge of Kotlin and basic knowledge of HTML and CSS. Understanding the basic concepts behind React may help you understand some sample code, but it is not strictly required.

You can get the final application as well as the intermediate steps here. Each step is available from its own branch and is linked at the bottom of its corresponding section.

Before you start

  1. Download and install the latest version of IntelliJ IDEA.
  2. Clone the project template and open it in IntelliJ IDEA. The template includes a basic Kotlin/JS Gradle project with all required configurations and dependencies

    • Dependencies and tasks in the build.gradle.kts file:
    dependencies {
        // React, React DOM + Wrappers
        implementation(enforcedPlatform("org.jetbrains.kotlin-wrappers:kotlin-wrappers-bom:1.0.0-pre.354"))
        implementation("org.jetbrains.kotlin-wrappers:kotlin-react")
        implementation("org.jetbrains.kotlin-wrappers:kotlin-react-dom")

        // Kotlin React Emotion (CSS)
        implementation("org.jetbrains.kotlin-wrappers:kotlin-emotion")

        // Video Player
        implementation(npm("react-player", "2.10.1"))

        // Share Buttons
        implementation(npm("react-share", "4.4.0"))

        // Coroutines & serialization
        implementation("org.jetbrains.kotlinx:kotlinx-coroutines-core:1.6.3")
        implementation("org.jetbrains.kotlinx:kotlinx-serialization-json:1.3.3")
    }

    • An HTML template page in src/main/resources/index.html for inserting JavaScript code that you'll be using in this tutorial:
    <!doctype html>
    <html lang="en">
    <head>
        <meta charset="UTF-8">
        <title>Hello, Kotlin/JS!</title>
    </head>
    <body>
        <div id="root"></div>
        <script src="confexplorer.js"></script>
    </body>
    </html>


Kotlin/JS projects are automatically bundled with all of your code and its dependencies into a single JavaScript file with the same name as the project, confexplorer.js, when you build them. As a typical JavaScript convention, the content of the body (including the root div) is loaded first to ensure that the browser loads all page elements before the scripts.

  • A code snippet in src/main/kotlin/Main.kt:

     import kotlinx.browser.document

     fun main() {
         document.bgColor = "red"
     }


Run the development server

By default, the Kotlin/JS Gradle plugin comes with support for an embedded webpack-dev-server, allowing you to run the application from the IDE without manually setting up any servers.

To test that the program successfully runs in the browser, start the development server by invoking the run or browserDevelopmentRun task (available in the other or kotlin browser directory) from the Gradle tool window inside IntelliJ IDEA:

Gradle tasks list

To run the program from the Terminal, use ./gradlew run instead.

When the project is compiled and bundled, a blank red page will appear in a browser window:

Blank red page

Enable hot reload / continuous mode

Configure continuous compilation mode so you don't have to manually compile and execute your project every time you make changes. Make sure to stop all running development server instances before proceeding.

  1. Edit the run configuration that IntelliJ IDEA automatically generates after running the Gradle run task for the first time:

    Edit a run configuration

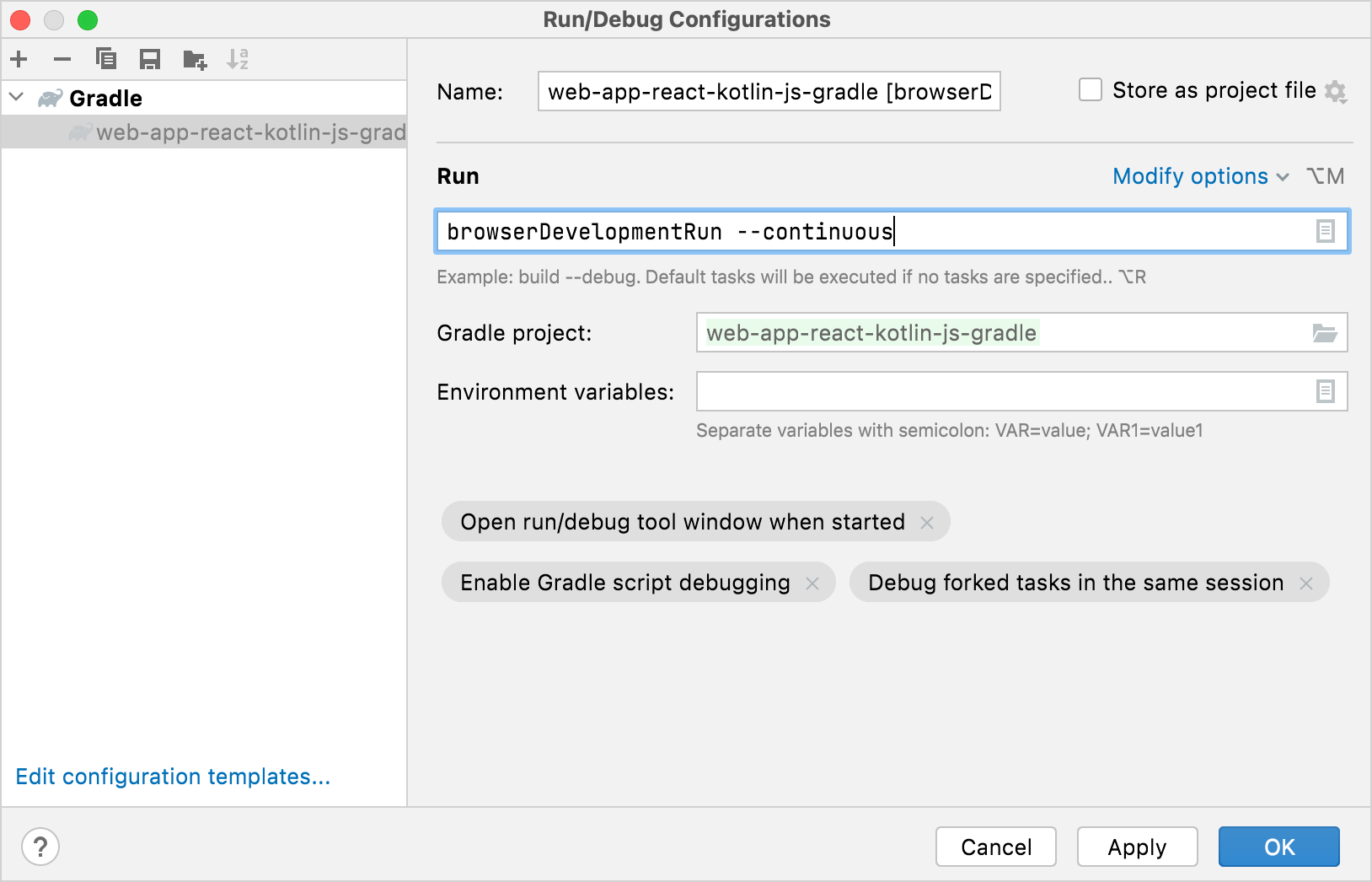

  2. In the Run/Debug Configurations dialog, add the --continuous option to the arguments for the run configuration:

    Enable continuous mode

    After applying the changes, you can use the Run button inside IntelliJ IDEA to start the development server back up. To run the continuous Gradle builds from the Terminal, use ./gradlew run --continuous instead.

  3. To test this feature, change the color of the page to blue in the Main.kt file while the Gradle task is running:

    document.bgColor = "blue"


    The project then recompiles, and after a reload the browser page will be the new color.

You can keep the development server running in continuous mode during the development process. It will automatically rebuild and reload the page when you make changes.

You can find this state of the project on the master branch here.

Create a web app draft

Add the first static page with React

To make your app display a simple message, replace the code in the Main.kt file with the following:

import kotlinx.browser.document
import react.*
import emotion.react.css
import csstype.Position
import csstype.px
import react.dom.html.ReactHTML.h1
import react.dom.html.ReactHTML.h3
import react.dom.html.ReactHTML.div
import react.dom.html.ReactHTML.p
import react.dom.html.ReactHTML.img
import react.dom.client.createRoot
import kotlinx.serialization.Serializable

fun main() {
    val container = document.getElementById("root") ?: error("Couldn't find root container!")
    createRoot(container).render(Fragment.create {
        h1 {
            +"Hello, React+Kotlin/JS!"
        }
    })
}
  • The render() function instructs kotlin-react-dom to render the first HTML element inside a fragment to the root element. This element is a container defined in src/main/resources/index.html, which was included in the template.
  • The content is an <h1> header and uses a typesafe DSL to render HTML.
  • h1 is a function that takes a lambda parameter. When you add the + sign in front of a string literal, the unaryPlus() function is actually invoked using operator overloading. It appends the string to the enclosed HTML element.

When the project recompiles, the browser displays this HTML page:

An HTML page example

Convert HTML to Kotlin's typesafe HTML DSL

The Kotlin wrappers for React come with a domain-specific language (DSL) that makes it possible to write HTML in pure Kotlin code. In this way, it's similar to JSX from JavaScript. However, with this markup being Kotlin, you get all the benefits of a statically typed language, such as autocomplete or type checking.

Compare the classic HTML code for your future web app and its typesafe variant in Kotlin:

【HTML】

<h1>KotlinConf Explorer</h1>
<div>
    <h3>Videos to watch</h3>
    <p>John Doe: Building and breaking things</p>
    <p>Jane Smith: The development process</p>
    <p>Matt Miller: The Web 7.0</p>
    <h3>Videos watched</h3>
    <p>Tom Jerry: Mouseless development</p>
</div>
<div>
    <h3>John Doe: Building and breaking things</h3>
    <img src="https://via.placeholder.com/640x360.png?text=Video+Player+Placeholder">
</div>

【Kotlin】

h1 {
    +"KotlinConf Explorer"
}
div {
    h3 {
        +"Videos to watch"
    }
    p {
        + "John Doe: Building and breaking things"
    }
    p {
        +"Jane Smith: The development process"
    }
    p {
        +"Matt Miller: The Web 7.0"
    }
    h3 {
        +"Videos watched"
    }
    p {
        +"Tom Jerry: Mouseless development"
    }
}
div {
    h3 {
        +"John Doe: Building and breaking things"
    }
    img {
       src = "https://via.placeholder.com/640x360.png?text=Video+Player+Placeholder"
    }
}

Copy the Kotlin code and update the Fragment.create() function call inside the main() function, replacing the previous h1 tag.

Wait for the browser to reload. The page should now look like this:

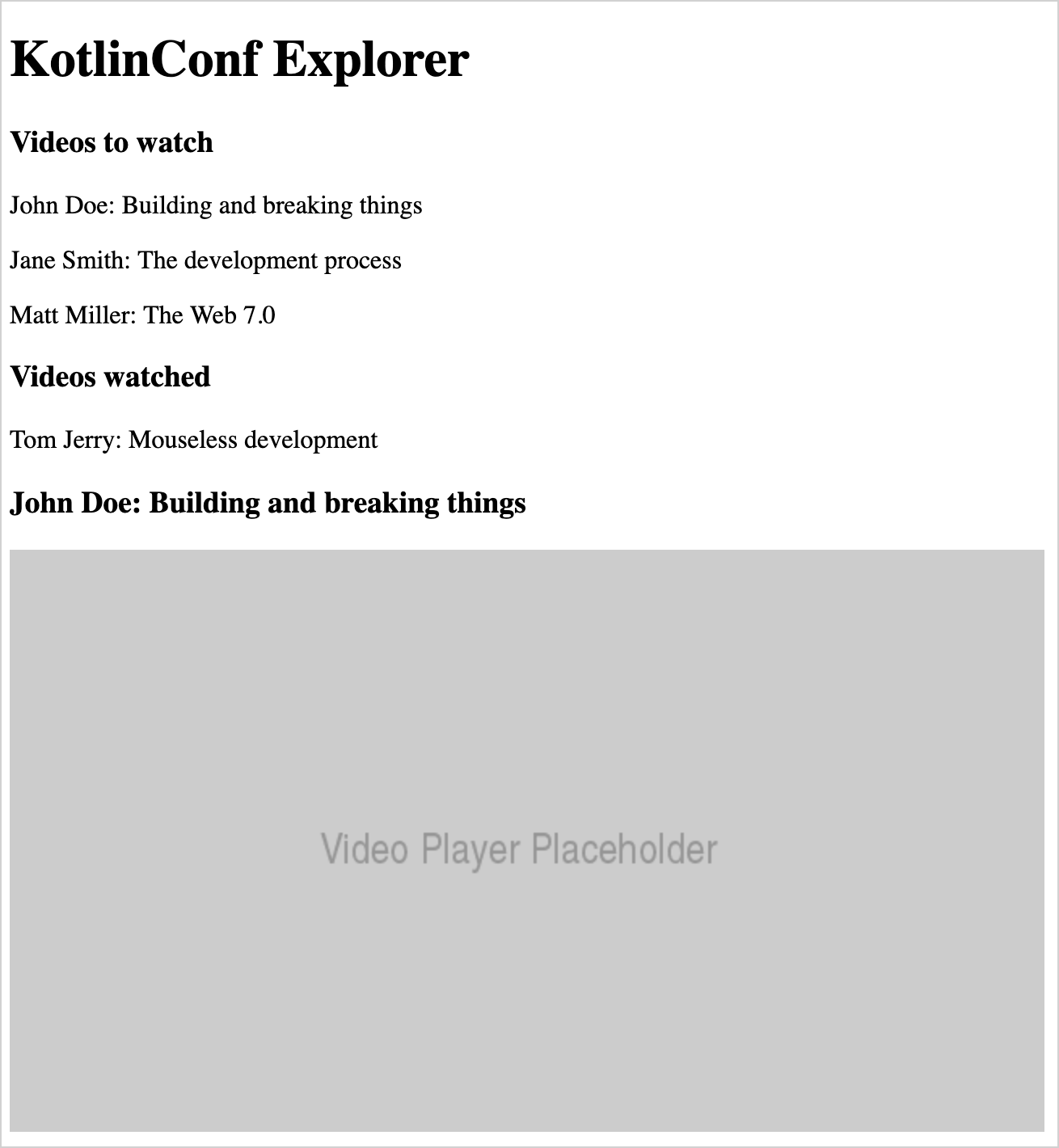

The web app draft

Add videos using Kotlin constructs in markup

There are some advantages to writing HTML in Kotlin using this DSL. You can manipulate your app using regular Kotlin constructs, like loops, conditions, collections, and string interpolation.

You can now replace the hardcoded list of videos with a list of Kotlin objects:

  1. In Main.kt, create a Video data class to keep all video attributes in one place:

    data class Video(
        val id: Int,
        val title: String,
        val speaker: String,
        val videoUrl: String
    )

  2. Fill up the two lists, for unwatched videos and watched videos, respectively. Add these declarations at file-level in Main.kt:

    val unwatchedVideos = listOf(
        Video(1, "Opening Keynote", "Andrey Breslav", "https://youtu.be/PsaFVLr8t4E"),
        Video(2, "Dissecting the stdlib", "Huyen Tue Dao", "https://youtu.be/Fzt_9I733Yg"),
        Video(3, "Kotlin and Spring Boot", "Nicolas Frankel", "https://youtu.be/pSiZVAeReeg")
    )

    val watchedVideos = listOf(
        Video(4, "Creating Internal DSLs in Kotlin", "Venkat Subramaniam", "https://youtu.be/JzTeAM8N1-o")
    )

  3. To use these videos on the page, write a Kotlin for loop to iterate over the collection of unwatched Video objects. Replace the three p tags under "Videos to watch" with the following snippet:

    for (video in unwatchedVideos) {
        p {
            +"${video.speaker}: ${video.title}"
        }
    }

  4. Apply the same process to modify the code for the single tag following "Videos watched" as well:

    for (video in watchedVideos) {
        p {
            +"${video.speaker}: ${video.title}"
        }
    }


Wait for the browser to reload. The layout should stay the same as before. You can add some more videos to the list to make sure that the loop is working.

Add styles with typesafe CSS

The kotlin-emotion wrapper for the Emotion library makes it possible to specify CSS attributes – even dynamic ones – right alongside HTML with JavaScript. Conceptually, that makes it similar to CSS-in-JS – but for Kotlin. The benefit of using a DSL is that you can use Kotlin code constructs to express formatting rules.

The template project for this tutorial already includes the dependency needed to use kotlin-emotion:

dependencies {
    // ...
    // Kotlin React Emotion (CSS) (chapter 3)
    implementation("org.jetbrains.kotlin-wrappers:kotlin-emotion")
    // ...
}

With kotlin-emotion, you can specify a css block inside HTML elements div and h3, where you can define the styles.

To move the video player to the top right-hand corner of the page, use CSS and adjust the code for the video player (the last div in the snippet):

div {
    css {
        position = Position.absolute
        top = 10.px
        right = 10.px
    }
    h3 {
        +"John Doe: Building and breaking things"
    }
    img {
        src = "https://via.placeholder.com/640x360.png?text=Video+Player+Placeholder"
    }
}

Feel free to experiment with some other styles. For example, you could change the fontFamily or add some color to your UI.

You can find this state of the project in the 02-first-static-page branch here.

Design app components

The basic building blocks in React are called components. Components themselves can also be composed of other, smaller components. By combining components, you build your application. If you structure components to be generic and reusable, you'll be able to use them in multiple parts of the app without duplicating code or logic.

The content of the render() function generally describes a basic component. The current layout of your application looks like this:

Current layout

If you decompose your application into individual components, you'll end up with a more structured layout in which each component handles its responsibilities:

Structured layout with components

Components encapsulate a particular functionality. Using components shortens source code and makes it easier to read and understand.

Add the main component

To start creating the application's structure, first explicitly specify App, the main component for rendering to the rootelement:

  1. Create a new App.kt file in the src/main/kotlin folder.
  2. Inside this file, add the following snippet and move the typesafe HTML from Main.kt into it:

    import kotlinx.coroutines.async
    import react.*
    import react.dom.*
    import kotlinx.browser.window
    import kotlinx.coroutines.*
    import kotlinx.serialization.decodeFromString
    import kotlinx.serialization.json.Json
    import emotion.react.css
    import csstype.Position
    import csstype.px
    import react.dom.html.ReactHTML.h1
    import react.dom.html.ReactHTML.h3
    import react.dom.html.ReactHTML.div
    import react.dom.html.ReactHTML.p
    import react.dom.html.ReactHTML.img

    val App = FC<Props> {
        // typesafe HTML goes here, starting with the first h1 tag!
    }


    The FC function creates a function component.

  3. In the Main.kt file, update the main() function as follows:

    fun main() {
        val container = document.getElementById("root") ?: error("Couldn't find root container!")
        createRoot(container).render(App.create())
    }


    Now the program creates an instance of the App component and renders it to the specified container.

For more information about React concepts, see the documentation and guides.

Extract a list component

Since the watchedVideos and unwatchedVideos lists each contain a list of videos, it makes sense to create a single reusable component, and only adjust the content displayed in the lists.

The VideoList component follows the same pattern as the App component. It uses the FC builder function, and contains the code from the unwatchedVideos list.

  1. Create a new VideoList.kt file in the src/main/kotlin folder and add the following code:

    import kotlinx.browser.window
    import react.*
    import react.dom.*
    import react.dom.html.ReactHTML.p

    val VideoList = FC<Props> {
        for (video in unwatchedVideos) {
            p {
                +"${video.speaker}: ${video.title}"
            }
        }
    }

  2. In App.kt, use the VideoList component by invoking it without parameters:

    // . . .
    div {
        h3 {
            +"Videos to watch"
        }
        VideoList()

        h3 {
            +"Videos watched"
        }
        VideoList()
    }
    // . . .


    For now, the App component has no control over the content that is shown by the VideoList component. It's hard-coded, so you see the same list twice.

Add props to pass data between components

Since you're going to reuse the VideoList component, you'll need to be able to fill it with different content. You can add the ability to pass the list of items as an attribute to the component. In React, these attributes are called props. When the props of a component are changed in React, the framework automatically re-renders the component.

For VideoList, you'll need a prop containing the list of videos to be shown. Define an interface that holds all the props which can be passed to a VideoList component:

  1. Add the following definition to the VideoList.kt file:

    external interface VideoListProps : Props {
        var videos: List<Video>
    }


    The external modifier tells the compiler that the interface's implementation is provided externally, so it doesn't try to generate JavaScript code from the declaration.

  2. Adjust the class definition of VideoList to make use of the props that are passed into the FC block as a parameter:

    val VideoList = FC<VideoListProps> { props ->
        for (video in props.videos) {
            p {
                key = video.id.toString()
                +"${video.speaker}: ${video.title}"
            }
        }
    }


    The key attribute helps the React renderer figure out what to do when the value of props.videos changes. It uses the key to determine which parts of a list need to be refreshed and which ones stay the same. You can find more information about lists and keys in the React guide.

  3. In the App component, make sure that the child components are instantiated with the proper attributes. In App.kt, replace the two loops underneath the h3 elements with an invocation of VideoList together with the attributes for unwatchedVideos and watchedVideos. In the Kotlin DSL, you assign them inside a block belonging to the VideoList component:

    h3 {
        +"Videos to watch"
    }
    VideoList {
        videos = unwatchedVideos
    }
    h3 {
        +"Videos watched"
    }
    VideoList {
        videos = watchedVideos
    }


After a reload, the browser will show that the lists now render correctly.

Make the list interactive

First, add an alert message that pops up when users click on a list entry. In VideoList.kt, add an onClick handler function that triggers an alert with the current video:

// . . .
p {
    key = video.id.toString()
    onClick = {
        window.alert("Clicked $video!")
    }
    +"${video.speaker}: ${video.title}"
}
// . . .

If you click on one of the list items in the browser window, you'll get information about the video in an alert window like this:

Browser alert window

Defining an onClick function directly as lambda is concise and very useful for prototyping. However, due to the way equality currently works in Kotlin/JS, performance-wise it's not the most optimized way to pass click handlers. If you want to optimize rendering performance, consider storing your functions in a variable and passing them.

Add state to keep values

Instead of just alerting the user, you can add some functionality for highlighting the selected video with a ▶ triangle. To do that, introduce some state specific to this component.

State is one of core concepts in React. In modern React (which uses the so-called Hooks API), state is expressed using the useState hook.

  1. Add the following code to the top of the VideoList declaration:

    val VideoList = FC<VideoListProps> { props ->
        var selectedVideo: Video? by useState(null)
    // . . .

  • The VideoList functional component keeps state (a value that is independent of the current function invocation). State is nullable, and has the Video? type. Its default value is null.
  • The useState() function from React instructs the framework to keep track of state across multiple invocations of the function. For example, even though you specify a default value, React makes sure that the default value is only assigned in the beginning. When state changes, the component will re-render based on the new state.
  • The by keyword indicates that useState() acts as a delegated property. Like with any other variable, you read and write values. The implementation behind useState() takes care of the machinery required to make state work.

    To learn more about the State Hook, check out the React documentation.

  1. Change your implementation of the VideoList component to look as follows:

    val VideoList = FC<VideoListProps> { props ->
        var selectedVideo: Video? by useState(null)
        for (video in props.videos) {
            p {
                key = video.id.toString()
                onClick = {
                    selectedVideo = video
                }
                if (video == selectedVideo) {
                    +"▶ "
                }
                +"${video.speaker}: ${video.title}"
            }
        }
    }

    • When the user clicks a video, its value is assigned to the selectedVideo variable.
    • When the selected list entry is rendered, the triangle is prepended.

You can find more details about state management in the React FAQ.

Check the browser and click an item in the list to make sure that everything is working correctly.

You can find this state of the project in the 03-first-component branch here.

Compose components

Currently, the two video lists work on their own, meaning that each list keeps track of a selected video. Users can select two videos, one in the unwatched list and one in watched, even though there's only one player:

Two videos are selected in both lists simultaneously

A list can't keep track of which video is selected both inside itself, and inside a sibling list. The reason is that the selected video is part not of the list state, but of the application state. This means you need to lift state out of the individual components.

Lift state

React makes sure that props can only be passed from a parent component to its children. This prevents components from being hard-wired together.

If a component wants to change state of a sibling component, it needs to do so via its parent. At that point, state also no longer belongs to any of the child components but to the overarching parent component.

The process of migrating state from components to their parents is called lifting state. For your app, add currentVideo as state to the App component:

  1. In App.kt, add the following to the top of the definition of the App component:

    val App = FC<Props> {
        var currentVideo: Video? by useState(null)
        // . . .
    }


    The VideoList component no longer needs to keep track of state. It will receive the current video as a prop instead.

  2. Remove the useState() call in VideoList.kt.

  3. Prepare the VideoList component to receive the selected video as a prop. To do so, expand the VideoListProps interface to contain the selectedVideo:

    external interface VideoListProps : Props {
        var videos: List<Video>
        var selectedVideo: Video?
    }

  4. Change the condition of the triangle so that it uses props instead of state:

    if (video == props.selectedVideo) {
        +"▶ "
    }


Pass handlers

At the moment, there's no way to assign a value to a prop, so the onClick function won't work the way it is currently set up. To change state of a parent component, you need to lift state again.

In React, state always flows from parent to child. So, to change the application state from one of the child components, you need to move the logic for handling user interaction to the parent component and then pass the logic in as a prop. Remember that in Kotlin, variables can have the type of a function.

  1. Expand the VideoListProps interface again so that it contains a variable onSelectVideo, which is a function that takes a Video and returns Unit:

    external interface VideoListProps : Props {
        // ...
        var onSelectVideo: (Video) -> Unit
    }

  2. In the VideoList component, use the new prop in the onClick handler:

    onClick = {
        props.onSelectVideo(video)
    }

  3. You can now go back to the App component and pass selectedVideo and a handler for onSelectVideo for each of the two video lists:

    VideoList {
        videos = unwatchedVideos // and watchedVideos respectively
        selectedVideo = currentVideo
        onSelectVideo = { video ->
            currentVideo = video
        }
    }

  4. Repeat the previous step for the watched videos list.

Switch back to your browser and make sure that when selecting a video the selection jumps between the two lists without duplication.

You can find this state of the project on the 04-composing-components branch here.

Add more components

Extract the video player component

You can now create another self-contained component, a video player, which is currently a placeholder image. Your video player needs to know the talk title, the author of the talk, and the link to the video. This information is already contained in each Video object, so you can pass it as a prop and access its attributes.

  1. Create a new VideoPlayer.kt file and add the following implementation for the VideoPlayer component:

    import csstype.*
    import react.*
    import emotion.react.css
    import react.dom.html.ReactHTML.button
    import react.dom.html.ReactHTML.div
    import react.dom.html.ReactHTML.h3
    import react.dom.html.ReactHTML.img

    external interface VideoPlayerProps : Props {
        var video: Video
    }

    val VideoPlayer = FC<VideoPlayerProps> { props ->
        div {
            css {
                position = Position.absolute
                top = 10.px
                right = 10.px
            }
            h3 {
                +"${props.video.speaker}: ${props.video.title}"
            }
            img {
                src = "https://via.placeholder.com/640x360.png?text=Video+Player+Placeholder"
            }
        }
    }

  2. Because the VideoPlayerProps interface specifies that the VideoPlayer component takes a non-null Video, make sure to handle this in the App component accordingly.

    In App.kt, replace the previous div snippet for the video player with the following:

    currentVideo?.let { curr ->
        VideoPlayer {
            video = curr
        }
    }


    The let scope function ensures that the VideoPlayer component is only added when state.currentVideo is not null.

Now clicking an entry in the list will bring up the video player and populate it with the information from the clicked entry.

Add a button and wire it

To make it possible for users to mark a video as watched or unwatched and to move it between the two lists, add a button to the VideoPlayer component.

Since this button will move videos between two different lists, the logic handling state change needs to be lifted out of the VideoPlayer and passed in from the parent as a prop. The button should look different based on whether the video has been watched or not. This is also information you need to pass as a prop.

  1. Expand the VideoPlayerProps interface in VideoPlayer.kt to include properties for those two cases:

    external interface VideoPlayerProps : Props {
        var video: Video
        var onWatchedButtonPressed: (Video) -> Unit
        var unwatchedVideo: Boolean
    }

  2. You can now add the button to the actual component. Copy the following snippet into the body of the VideoPlayer component, between the h3 and img tags:

    button {
        css {
            display = Display.block
            backgroundColor = if (props.unwatchedVideo) NamedColor.lightgreen else NamedColor.red
        }
        onClick = {
            props.onWatchedButtonPressed(props.video)
        }
        if (props.unwatchedVideo) {
            +"Mark as watched"
        } else {
            +"Mark as unwatched"
        }
    }


    With the help of Kotlin CSS DSL that make it possible to change styles dynamically, you can change the color of the button using a basic Kotlin if expression.

Move video lists to the application state

Now it's time to adjust the VideoPlayer usage site in the App component. When the button is clicked, a video should be moved from the unwatched list to the watched list or vice versa. Since these lists can now actually change, move them into the application state:

  1. In App.kt, add the following useState() calls to the top of the App component:

    val App = FC<Props> {
        var currentVideo: Video? by useState(null)
        var unwatchedVideos: List<Video> by useState(listOf(
            Video(1, "Opening Keynote", "Andrey Breslav", "https://youtu.be/PsaFVLr8t4E"),
            Video(2, "Dissecting the stdlib", "Huyen Tue Dao", "https://youtu.be/Fzt_9I733Yg"),
            Video(3, "Kotlin and Spring Boot", "Nicolas Frankel", "https://youtu.be/pSiZVAeReeg")
        ))
        var watchedVideos: List<Video> by useState(listOf(
            Video(4, "Creating Internal DSLs in Kotlin", "Venkat Subramaniam", "https://youtu.be/JzTeAM8N1-o")
        ))
        // . . .
    }

  2. Since all the demo data is included in the default values for watchedVideos and unwatchedVideos directly, you no longer need the file-level declarations. In Main.kt, delete the declarations for watchedVideos and unwatchedVideos.

  3. Change the call-site for VideoPlayer in the App component that belongs to the video player to look like this:

    VideoPlayer {
        video = curr
        unwatchedVideo = curr in unwatchedVideos
        onWatchedButtonPressed = {
            if (video in unwatchedVideos) {
                unwatchedVideos = unwatchedVideos - video
                watchedVideos = watchedVideos + video
            } else {
                watchedVideos = watchedVideos - video
                unwatchedVideos = unwatchedVideos + video
            }
        }
    }


Go back to the browser, select a video, and press the button a few times. The video will jump between the two lists.

You can find this state of the project in the 05-more-components branch here.

Use packages from npm

To make the app usable, you still need a video player that actually plays videos and some buttons to help people share the content.

React has a rich ecosystem with a lot of pre-made components you can use instead of building this functionality yourself.

Add the video player component

To replace the placeholder video component with an actual YouTube player, use the react-player package from npm. It can play videos and allows you to control the appearance of the player.

For the component documentation and the API description, see its README in GitHub.

  1. Check the build.gradle.kts file. The react-player package should be already included:

    dependencies {
        // ...
        // Video Player
        implementation(npm("react-player", "2.10.1"))
        // ...
    }


    As you can see, npm dependencies can be added to a Kotlin/JS project by using the npm() function in the dependencies block of the build file. The Gradle plugin then takes care of downloading and installing these dependencies for you. To do so, it uses its own bundled installation of the yarn package manager.

  2. To use the JavaScript package from inside the React application, it's necessary to tell the Kotlin compiler what to expect by providing it with external declarations.

    Create a new ReactYouTube.kt file and add the following content:

    @file:JsModule("react-player")
    @file:JsNonModule

    import react.*

    @JsName("default")
    external val ReactPlayer: ComponentClass<dynamic>


    When the compiler sees an external declaration like ReactPlayer, it assumes that the implementation for the corresponding class is provided by the dependency and doesn't generate code for it.

    The last two lines are equivalent to a JavaScript import like require("react-player").default;. They tell the compiler that it's certain that a component will conform to ComponentClass<dynamic> at runtime.

However, in this configuration, the generic type for the props accepted by ReactPlayer is set to dynamic. That means the compiler will accept any code, at the risk of breaking things at runtime.

A better alternative would be to create an external interface that specifies what kind of properties belong to the props for this external component. You can learn about the props' interface in the README for the component. In this case, use the url and controls props:

  1. Adjust the content of ReactPlayer.kt accordingly:

    @file:JsModule("react-player")
    @file:JsNonModule

    import react.*

    @JsName("default")
    external val ReactPlayer: ComponentClass<ReactPlayerProps>

    external interface ReactPlayerProps : Props {
        var url: String
        var controls: Boolean
    }

  2. You can now use the new ReactPlayer to replace the gray placeholder rectangle in the VideoPlayer component. In VideoPlayer.kt, replace the img tag with the following snippet:

    ReactPlayer {
        url = props.video.videoUrl
        controls = true
    }


Add social share buttons

An easy way to share the application's content is to have social share buttons for messengers and email. You can use an off-the-shelf React component for this as well, for example, react-share:

  1. Check the build.gradle.kts file. This npm library should already be included:

    dependencies {
        // ...
        // Share Buttons
        implementation(npm("react-share", "4.4.0"))
        // ...
    }

  2. To use react-share from Kotlin, you'll need to write more basic external declarations. The examples on GitHub show that a share button consists of two React components: EmailShareButton and EmailIcon, for example. Different types of share buttons and icons all have the same kind of interface. You'll create the external declarations for each component the same way you already did for the video player.

    Add the following code to a new ReactShare.kt file:

    @file:JsModule("react-share")
    @file:JsNonModule

    import react.ComponentClass
    import react.Props

    @JsName("EmailIcon")
    external val EmailIcon: ComponentClass<IconProps>

    @JsName("EmailShareButton")
    external val EmailShareButton: ComponentClass<ShareButtonProps>

    @JsName("TelegramIcon")
    external val TelegramIcon: ComponentClass<IconProps>

    @JsName("TelegramShareButton")
    external val TelegramShareButton: ComponentClass<ShareButtonProps>

    external interface ShareButtonProps : Props {
        var url: String
    }

    external interface IconProps : Props {
        var size: Int
        var round: Boolean
    }

  3. Add new components into the user interface of the application. In VideoPlayer.kt, add two share buttons in a div right above the usage of ReactPlayer:

    // . . .
    div {
        css {
             position = Position.absolute
             top = 10.px
             right = 10.px
         }
        EmailShareButton {
            url = props.video.videoUrl
            EmailIcon {
                size = 32
                round = true
            }
        }
        TelegramShareButton {
            url = props.video.videoUrl
            TelegramIcon {
                size = 32
                round = true
            }
        }
    }
    // . . .


You can now check your browser and see whether the buttons actually work. When clicking on the button, a share window should appear with the URL of the video. If the buttons don't show up or work, you may need to disable your ad and social media blocker.

Share window

Feel free to repeat this step with share buttons for other social networks available in react-share.

You can find this state of the project in the 06-packages-from-npm branch here.

Use an external REST API

You can now replace the hard-coded demo data with some real data from a REST API in the app.

For this tutorial, there's a small API. It offers only a single endpoint, videos, and takes a numeric parameter to access an element from the list. If you visit the API with your browser, you will see that the objects returned from the API have the same structure as Video objects.

Use JS functionality from Kotlin

Browsers already come with a large variety of Web APIs. You can also use them from Kotlin/JS, since it includes wrappers for these APIs out of the box. One example is the fetch API, which is used for making HTTP requests.

The first potential issue is that browser APIs like fetch() use callbacks to perform non-blocking operations. When multiple callbacks are supposed to run one after the other, they need to be nested. Naturally, the code gets heavily indented, with more and more pieces of functionality stacked inside each other, which makes it harder to read.

To overcome this, you can use Kotlin's coroutines, a better approach for such functionality.

The second issue arises from the dynamically typed nature of JavaScript. There are no guarantees about the type of data returned from the external API. To solve this, you can use the kotlinx.serialization library.

Check the build.gradle.kts file. The relevant snippet should already exist:

dependencies {
    // . . .
    // Coroutines & serialization
    implementation("org.jetbrains.kotlinx:kotlinx-coroutines-core:1.6.3")
}

Add serialization

When you call an external API, you get back JSON-formatted text that still needs to be turned into a Kotlin object that can be worked with.

kotlinx.serialization is a library that makes it possible to write these types of conversions from JSON strings to Kotlin objects.

  1. Check the build.gradle.kts file. The corresponding snippet should already exist:

    plugins {
        // . . .
        kotlin("plugin.serialization") version "1.8.0"
    }

    dependencies {
        // . . .
        // Serialization
        implementation("org.jetbrains.kotlinx:kotlinx-serialization-json:1.3.3")
    }

  2. As preparation for fetching the first video, it's necessary to tell the serialization library about the Video class. In Main.kt, add the @Serializable annotation to its definition:

    @Serializable
    data class Video(
        val id: Int,
        val title: String,
        val speaker: String,
        val videoUrl: String
    )


Fetch videos

To fetch a video from the API, add the following function in App.kt (or a new file):

suspend fun fetchVideo(id: Int): Video {
    val response = window
        .fetch("https://my-json-server.typicode.com/kotlin-hands-on/kotlinconf-json/videos/$id")
        .await()
        .text()
        .await()
    return Json.decodeFromString(response)
}
  • Suspending function fetch()es a video with a given id from the API. This response may take a while, so you await() the result. Next, text(), which uses a callback, reads the body from the response. Then you await() its completion.
  • Before returning the value of the function, you pass it to Json.decodeFromString, a function from kotlinx.coroutines. It converts the JSON text you received from the request into a Kotlin object with the appropriate fields.
  • The window.fetch function call returns a Promise object. You normally would have to define a callback handler that gets invoked once the Promise is resolved and a result is available. However, with coroutines, you can await() those promises. Whenever a function like await() is called, the method stops (suspends) its execution. Its execution continues once the Promise can be resolved.

To give users a selection of videos, define the fetchVideos() function, which will fetch 25 videos from the same API as above. To run all the requests concurrently, use the async functionality provided by Kotlin's coroutines:

  1. Add the following implementation to your App.kt:

    suspend fun fetchVideos(): List<Video> = coroutineScope {
        (1..25).map { id ->
            async {
                fetchVideo(id)
            }
        }.awaitAll()
    }


    Following the principle of structured concurrency, the implementation is wrapped in a coroutineScope. You can then start 25 asynchronous tasks (one per request) and wait for all of them to complete.

  2. You can now add data to your application. Add the definition for a mainScope, and change your App component so it starts with the following snippet. Don't forget to replace demo values with emptyLists instances as well:

    val mainScope = MainScope()

    val App = FC<Props> {
        var currentVideo: Video? by useState(null)
        var unwatchedVideos: List<Video> by useState(emptyList())
        var watchedVideos: List<Video> by useState(emptyList())

        useEffectOnce {
            mainScope.launch {
                unwatchedVideos = fetchVideos()
            }
        }
    // . . .

  • The MainScope() is a part of Kotlin's structured concurrency model and creates the scope for asynchronous tasks to run in.
  • useEffectOnce is another React hook (specifically, a simplified version of the useEffect hook). It indicates that the component performs a side effect. It doesn't just render itself but also communicates over the network.

Check your browser. The application should show actual data:

Fetched data from API

When you load the page:

  • The code of the App component will be invoked. This starts the code in the useEffectOnce block.
  • The App component is rendered with empty lists for the watched and unwatched videos.
  • When the API requests finish, the useEffectOnce block assigns it to the App component's state. This triggers a re-render.
  • The code of the App component will be invoked again, but the useEffectOnce block will not run for a second time.

If you want to get an in-depth understanding of how coroutines work, check out this tutorial on coroutines.

You can find this state of the project in the 07-using-external-rest-api branch here.

Deploy to production and the cloud

It's time to get the application published to the cloud and make it accessible to other people.

Package a production build

To package all assets in production mode, run the build task in Gradle via the tool window in IntelliJ IDEA or by running ./gradlew build. This generates an optimized project build, applying various improvements such as DCE (dead code elimination).

Once the build has finished, you can find all the files needed for deployment in /build/distributions. They include the JavaScript files, HTML files, and other resources required to run the application. You can put them on a static HTTP server, serve them using GitHub Pages, or host them on a cloud provider of your choice.

Deploy to Heroku

Heroku makes it quite simple to spin up an application that is reachable under its own domain. Their free tier should be sufficient for development purposes.

  1. Create an account.
  2. Install and authenticate the CLI client.
  3. Create a Git repository and attach a Heroku app by running the following commands in the Terminal while in the project root:

    git init
    heroku create
    git add .
    git commit -m "initial commit"

  4. Unlike a regular JVM application that would run on Heroku (one written with Ktor or Spring Boot, for example), your app generates static HTML pages and JavaScript files that need to be served accordingly. You can adjust the required buildpacks to serve the program properly:

    heroku buildpacks:set heroku/gradle
    heroku buildpacks:add https://github.com/heroku/heroku-buildpack-static.git

  5. To allow the heroku/gradle buildpack to run properly, a stage task needs to be in the build.gradle.kts file. This task is equivalent to the build task, and the corresponding alias is already included at the bottom of the file:

    // Heroku Deployment
    tasks.register("stage") {
        dependsOn("build")
    }

  6. Add a new static.json file to the project root to configure the buildpack-static.

  7. Add the root property inside the file:

    {
        "root": "build/distributions"
    }

  1. You can now trigger a deployment, for example, by running the following command:

    git add -A
    git commit -m "add stage task and static content root configuration"
    git push heroku master


If you're pushing from a non-main branch (like a step branch from the example repository), you need to adjust the command to push to the main remote (such as git push heroku 08-deploying-to-production:main).

If the deployment is successful, you will see the URL people can use to reach the application on the internet.

Web app deployment to production

You can find this state of the project in the finished branch here.

What's next

Add more features

You can use the resulting app as a jumping-off point to explore more advanced topics in the realm of React, Kotlin/JS, and more.

  • Search. You can add a search field to filter the list of talks – by title or by author, for example. Learn about how HTML form elements work in React.
  • Persistence. Currently, the application loses track of the viewer's watch list every time the page gets reloaded. Consider building your own backend, using one of the web frameworks available for Kotlin (such as Ktor). Alternatively, look into ways to store information on the client.
  • Complex APIs. Lots of datasets and APIs are available. You can pull all sorts of data into your application. For example, you can build a visualizer for cat photos or a royalty-free stock photo API.

Improve the style: responsiveness and grids

The application design is still very simple and won't look great on mobile devices or in narrow windows. Explore more of the CSS DSL to make the app more accessible.

Join the community and get help

The best way to report problems and get help is the kotlin-wrappers issue tracker. If you can't find a ticket for your issue, feel free to file a new one. You can also join the official Kotlin Slack. There are channels for #javascript and #react.

Learn more about coroutines

If you're interested in finding out more about how you can write concurrent code, check out the tutorial on coroutines.

Learn more about React

Now that you know the basic React concepts and how they translate to Kotlin, you can convert some other concepts outlined in the official guides on React into Kotlin.
