If you want to develop your Kotlin Multiplatform project and an iOS project simultaneously by sharing code between them, you can set up direct integration using a special script.

This script automates the process of connecting the Kotlin framework to iOS projects in Xcode:

The script uses the embedAndSignAppleFrameworkForXcode Gradle task designed specifically for the Xcode environment. During the setup, you add it to the run script phase of the iOS app build. After that, the Kotlin artifact is built and included in the derived data before running the iOS app build.

In general, the script:

• Copies the compiled Kotlin framework into the correct directory within the iOS project structure.
• Handles the code signing process of the embedded framework.
• Ensures that code changes in the Kotlin framework are reflected in the iOS app in Xcode.

How to set up

If you're currently using the CocoaPods plugin to connect your Kotlin framework, migrate first. If your project doesn't have CocoaPods dependencies, skip this step.

Migrate from the CocoaPods plugin

To migrate from the CocoaPods plugin:

1. In Xcode, clean build directories using Product | Clean Build Folder or with the Cmd + Shift + K shortcut.

2. In the directory with the Podfile, run the following command:

   pod deintegrate


3. Remove the cocoapods {} block from your build.gradle(.kts) files.

4. Delete the .podspec file and the Podfile.

Connect the framework to your project

To connect the Kotlin framework generated from the multiplatform project to your Xcode project:

1. The embedAndSignAppleFrameworkForXcode task only registers if the binaries.framework configuration option is declared. In your Kotlin Multiplatform project, check the iOS target declaration in the build.gradle.kts file.
2. In Xcode, open the iOS project settings by double-clicking the project name.

3. On the Build Phases tab of the project settings, click + and select New Run Script Phase.



4. Adjust the following script and copy the result to the run script phase:

   cd ""
   ./gradlew ::embedAndSignAppleFrameworkForXcode


   • In the cd command, specify the path to the root of your Kotlin Multiplatform project, for example, $SRCROOT/...
   • In the ./gradlew command, specify the name of the shared module, for example, :shared or :composeApp.



5. Drag the Run Script phase before the Compile Sources phase.

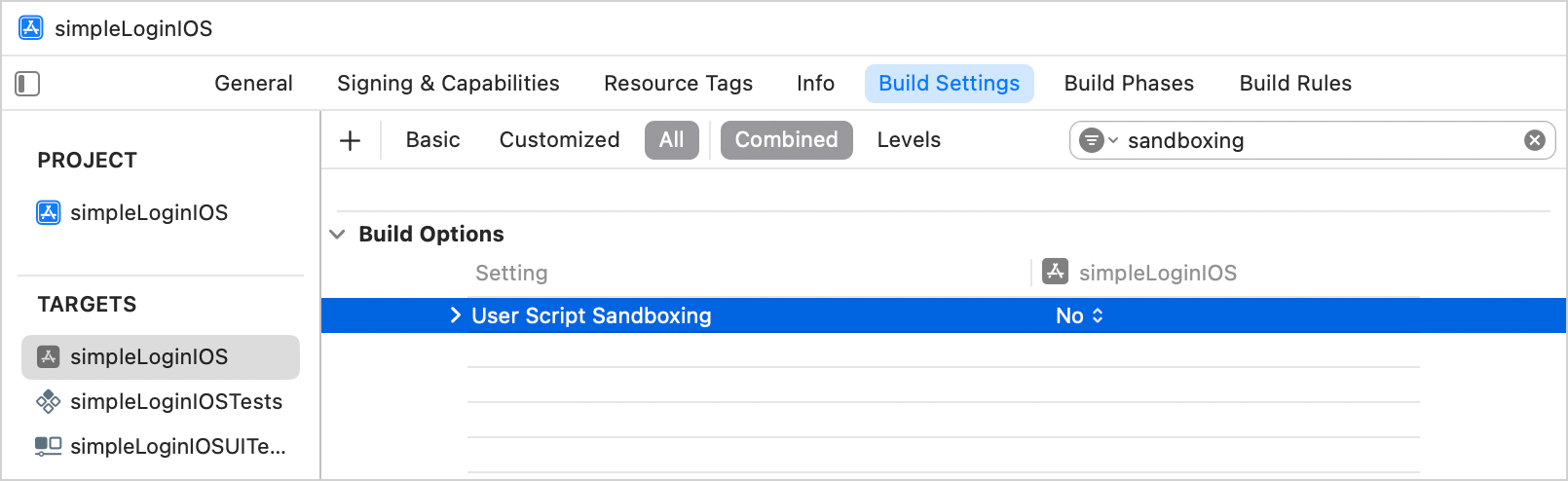

6. On the Build Settings tab, disable the User Script Sandboxing option under Build Options:



   This may require restarting your Gradle daemon if you built the iOS project without disabling sandboxing first. Stop the Gradle daemon process that might have been sandboxed:

   ./gradlew --stop


   {style="tip"}

7. Build the project in Xcode. If everything is set up correctly, the project will successfully build.

If you have a custom build configuration different from the default Debug or Release, on the Build Settings tab, add the KOTLIN_FRAMEWORK_BUILD_TYPE setting under User-Defined and set it to Debug or Release.

{style="note"}

What's next?

You can also take advantage of local integration when working with the Swift package manager. Learn how to add a dependency on a Kotlin framework in a local package.
